- A first of its kind, over-moulded first-stage end cap and environmental diaphragm to prevent ice build-up that could cause a free flow in extreme circumstances.
- Forged 1st stage body gives maximum thermal performance.
- Double swivel hose for greater freedom of movement and comfort.
- Ribbed diaphragm clamp on the 1st stage ensures improved heat exchange in cold water conditions.
- Angled HP ports allow for optimal hose routing and transmitter fitting.
The Apeks MTX-R Stage 3 Regulator Set combines the extreme cold water MTX-R regulator and MTX-R octopus into a ready to dive set. The MTX-R regulators were designed in accordance with the United States Navy Experimental Dive Unit extreme cold water test for unbelievable performance and reliability.

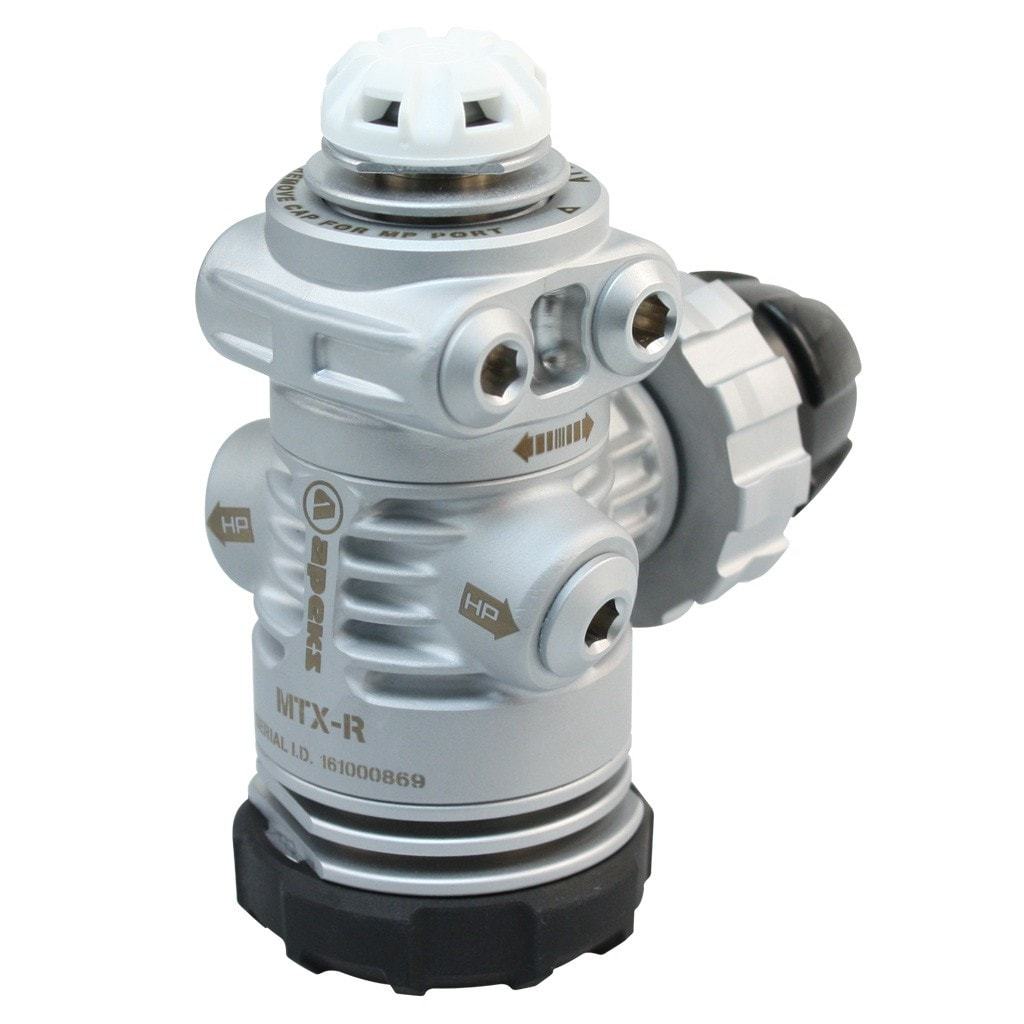

The first stage body of the MTX-R is forged for the best thermal performance and then has been covered with heat exchanging fins to increase the surface area and further improve the cold water performance and help prevent ice formation. The first stage uses an over-balanced diaphragm design for consistent performance throughout the diver and has been environmentally sealed to protect the internal components from the effects of the extreme cold at depth and also prevent contamination.
There are four low pressure ports on a parallel port turret with a fifth high flow port under a protective cap. A high pressure port can be found on either side of the main body and are pre-angled for optimal hose routing.
The MTX-R second stage has a large heat exchanger around the hose inlet to dissipate the extreme cold temperatures generated in the pneumatically balanced metal valve as the compressed air depressurises into the housing. Unusually, the second stage has no diver adjustable options and instead has been modified and adjusted to minimise the risk of a second stage free flow.The second stage is tough and robustly made with a wide exhaust deflector and fitted with the typical Apeks regulator mouthpiece for excellent comfort and hygienic properties.
The octopus delivers the same performance and cold water reliability as the second stage but is finished with a high visibility yellow hose, front cover and trim.
With an innovative first stage design that helps to prevent ice build up around the diaphragm, the MTX-R is reliable, rugged and expedition ready.
A first of its kind, over-moulded first-stage end cap and environmental diaphragm to prevent ice build-up that could cause a free flow in extreme circumstances.
Forged 1st stage body gives maximum thermal performance.
Ribbed diaphragm clamp on the 1st stage ensures improved heat exchange in cold water conditions.
Angled HP ports allow for optimal hose routing and transmitter fitting.
Parallel turret ports allow for improved hose orientation.
Superb protection from impact damage on both the 1st and 2nd stage.
Simple to use 2nd stage with no dive adjustment controls and a reduced chance of free flow.
Double swivel hose for greater freedom of movement and comfort.
Patented heat exchanger surrounds the valve mechanism, dissipating the cold caused by gas expansion while drawing in the warmth of the ambient water.
Developed in accordance with the United States Navy Experimental Dive Unit extreme cold water test.
Tested for Octopus use to 60 metres in cold water.
Connections Yoke and DIN available
Type of first stage Over-balanced diaphragm design, environmentally sealed
Body Type One piece forged body
Number of HP ports 2 (7/16″ UNF)
Number of MP ports 5 (3/8″ UNF)
Environmental Dry Kit Standard
First stage exterior Satin chrome
Orientation Convertible LH or RH
Coldwater Use Yes – extreme
Type of second stage Pneumatically balanced
Opening Effort Control Knob No
Integrated Venturi Lever No
Exhaust tee Diver Changeable – one set supplied
Heat Exchanger for freezing resistance Yes
Hose type Braided Flexi-hose
Nitrox compatible Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
In the mid-1970s, two friends decided to combine their knowledge of diving and precision engineering. Working from a small garage in the north of England, they set about creating what has become some of the most respected scuba diving equipment on the market.
Decades later that spirit of precision-engineering and craftsmanship continues. Our world-class production facility and the fact that we have total control over every manufacturing process make Apeks scuba diving regulators the industry benchmark for design, quality and performance.
Inspired by technical diving and designed for all, the full range of Apeks scuba diving equipment, which now includes regulators, bladders, drysuits, instruments and accessories, has been adopted by technical divers around the world. Apeks scuba diving equipment is being used to explore some of the deepest, coldest and most advanced dive environments on earth. Because when the environment demands, only one thing matters; that your dive kit is designed, developed and tested to keep you safe and comfortable.
